Automatic Filter Envelopes
NSF Certified
Filter envelopes below fit the fryer brand listed. For proper fit and correct match of filter material, refer to guidelines and material legend.
| ___Item # | Filter Size & Detail | Fryer Brand | Pack Case | Case Weight | Case Cube |
|---|---|---|---|---|---|
| D1223E3 | 12 1⁄4" x 23", 1 1⁄2" hole, 1 side | Anets | 100 | 6.00 lbs. | 0.93 |
| D1322E3 | 13" x 22", 7⁄8" hole, 1 side | Anets | 100 | 5.60 lbs. | 0.93 |
| D1214E4 | 12" x 14 1⁄4", 1 1⁄2" hole, centered | Ballantyne / Hobart | 100 | 8.50 lbs. | 0.9 |
| D1412E4 | 12 1⁄4" x 14 1⁄4", 1 1⁄2" hole, offset | Ballantyne / Hobart | 100 | 8.75 lbs. | 0.9 |
| D1113E4 | 11" x 13", 7⁄8" hole, 2 sides | Belshaw / Pitco | 100 | 7.25 lbs. | 0.94 |
| D918E31 | 9 1⁄4" x 18 1⁄4", 1 1⁄2" hole, 1 side | BKI / Bar-B-Q-King | 100 | 2.50 lbs. | 0.43 |
| D1320E3 | 13 1⁄2" x 20 1⁄2", 1 1⁄4" hole, 1 side | BKI | 100 | 5.50 lbs. | 0.64 |
| D1423E4 | 14 1⁄4" x 22 1⁄2", --1 1⁄16" hole, 1 side | Collectromatic / Winston | 100 | 15.25 lbs. | 1.17 |
| D1722E4 | 16 3⁄4" x 22 1⁄2", 1 1⁄16" hole, 1 side | Collectromatic / Winston | 100 | 17.50 lbs. | 1.9 |
| D1313E4 | 13" x 13 1⁄8", no hole | F.A.S.T. | 100 | 8.50 lbs. | 0.9 |
| D1120E3 | 11 1⁄2" x 20", 1 1⁄4" hole, 1 side | Frontline | 100 | 4.70 lbs. | 0.64 |
| D1719E3 | 17 1⁄2" x 19 1⁄4", no hole | Frymaster | 100 | 6.50 lbs. | 0.95 |
| D1415E4 | 14" x 15", 7⁄8" hole, 2 sides | Falcon / KFC | 100 | 10.50 lbs. | 0.9 |
| D1422E3 | 13 3⁄4" x 21", 1 1⁄2" hole, 1 side | Henny Penny | 100 | 4.90 lbs. | 0.93 |
| D2013E3 | 13 1⁄2" x 20 1⁄2", 1 1⁄2" hole, 1 side | Henny Penny | 100 | 5.10 lbs. | 0.64 |
| D1422E4 | 14" x 22", 1 1⁄2" hole, 1 side | Henny Penny | 100 | 14.50 lbs. | 1.32 |
| D913E4 | 9 1⁄4" x 13", 1" hole, 1 side | Hunter | 100 | 6.25 lbs. | 0.9 |
| D1418E4 | 14 1⁄4" x 18 1⁄4", 1 1⁄2" hole, 1 side | Hunter | 100 | 12.50 lbs. | 1.17 |
| D1500E4 | 14" x 15 1⁄2", 1 1⁄2" hole, 1 side | Hunter | 100 | 10.45 lbs. | 0.9 |
| D1718E4 | 17 1⁄2" x 18 1⁄2", 1 1⁄2" hole, 1 side | Hunter | 100 | 19.50 lbs. | 1.53 |
| D1920E4 | 19 3⁄4" x 20 3⁄4", 1 7⁄16" hole, 2 sides | Immaculator / KFC | 100 | 19.00 lbs. | 2.17 |
| D1614E4 | 14 1⁄2" x 16 3⁄4", 3⁄4" hole, 2 sides_ | Magnosol | 100 | 12.00 lbs. | 1.17 |
| D1517E4 | 15 1⁄2" x 17 3⁄4", 1 3⁄8" hole, 1 side | Magnum Filter Screen Adapter | 100 | 13.60 lbs. | 1.53 |
| D1420E5 | 14 3⁄8" x 20 1⁄2", 1 3⁄8" hole, 1 side | Pitco / Frialator | 100 | 16.78 lbs. | 1.6 |
| D1820E5 | 18 1⁄2" x 20 1⁄2", 1 3⁄8" hole, 1 side | Pitco / Frialator | 100 | 22.50 lbs. | 1.9 |
| D2018E4 | 18 1⁄2" x 20 1⁄2", 1 3⁄8" hole, 1 side | Pitco | 100 | 18.50 lbs. | 1.9 |
| D2010E5 | 10 1⁄2" x 20 1⁄2", 1 3⁄8" hole, 1 side | Pitco | 100 | 12.80 lbs. | 0.95 |
| D2214E5 | 14" x 22", 1 1⁄2" hole, 1 side | Pitco | 100 | 18.40 lbs. | 1.32 |
| D1820E7 | 18 1⁄2" x 20 1⁄2", 1 3⁄8" hole, 1 side | Pitco Heavy Duty | 100 | 28.00 lbs. | 2.61 |
| D1111E4 | 11" x 11", 7⁄8" hole, 2 sides | Sparkler | 100 | 6.50 lbs. | 0.9 |
| D1717E4 | 17" x 17 1⁄2", 7⁄8" hole, 2 sides | Sparkler | 100 | 14.00 lbs. | 1.22 |
| D2425E4 | 24" x 25", 1 3⁄4" hole, 2 sides | Sparkler / KFC | 100 | 28.00 lbs. | 2.17 |
| D1721E4 | 17 1⁄2" x 21", 1 1⁄2" hole, 1 side | Ultrafryer | 100 | 23.25 lbs. | 1.9 |
| D2332E4 | 23" x 32 1⁄2", 1 1⁄2" hole, 1 side | Ultrafryer | 50 | 18.30 lbs. | 1.62 |
| D1014E4 | 10 3⁄4" x 14 1⁄2", no hole | Vulcan Hart / Hobart | 100 | 9.00 lbs. | 0.9 |
| D1221E4 | 12" x 21 1⁄2",3⁄4" hole, 2 sides | Vulcan Hart / Hobart | 100 | 12.35 lbs. | 1.48 |
| D1424E3 | 13 1⁄2" x 24",7⁄8" hole, 2 sides | Vulcan Hart | 100 | 5.90 lbs. | 0.81 |
| D1318E3 | 13 1⁄2" x 18 1⁄2",7⁄8" hole, 2 sides | Vulcan Hart | 100 | 4.50 lbs. | 0.64 |
| D524E4 | 5 1⁄4" x 23 5⁄8",7⁄8" hole, 2 sides | Vulcan Hart | 100 | 6.30 lbs. | 0.81 |
Guides
How to size up a conventional filter
How To Size Up a Conventional Filter
Measure Width, Length or Diameter of the filter to the most outside points. Note any hole in the filter, the location of the hole and size or diameter of the hole. If the filter you’re looking for is not listed, or you have questions concerning filter size, material or availability, call 1-800-548-5150.
For assistance in matching up a filter, call 1-800-548-5150 (eastern) and ask us for help.

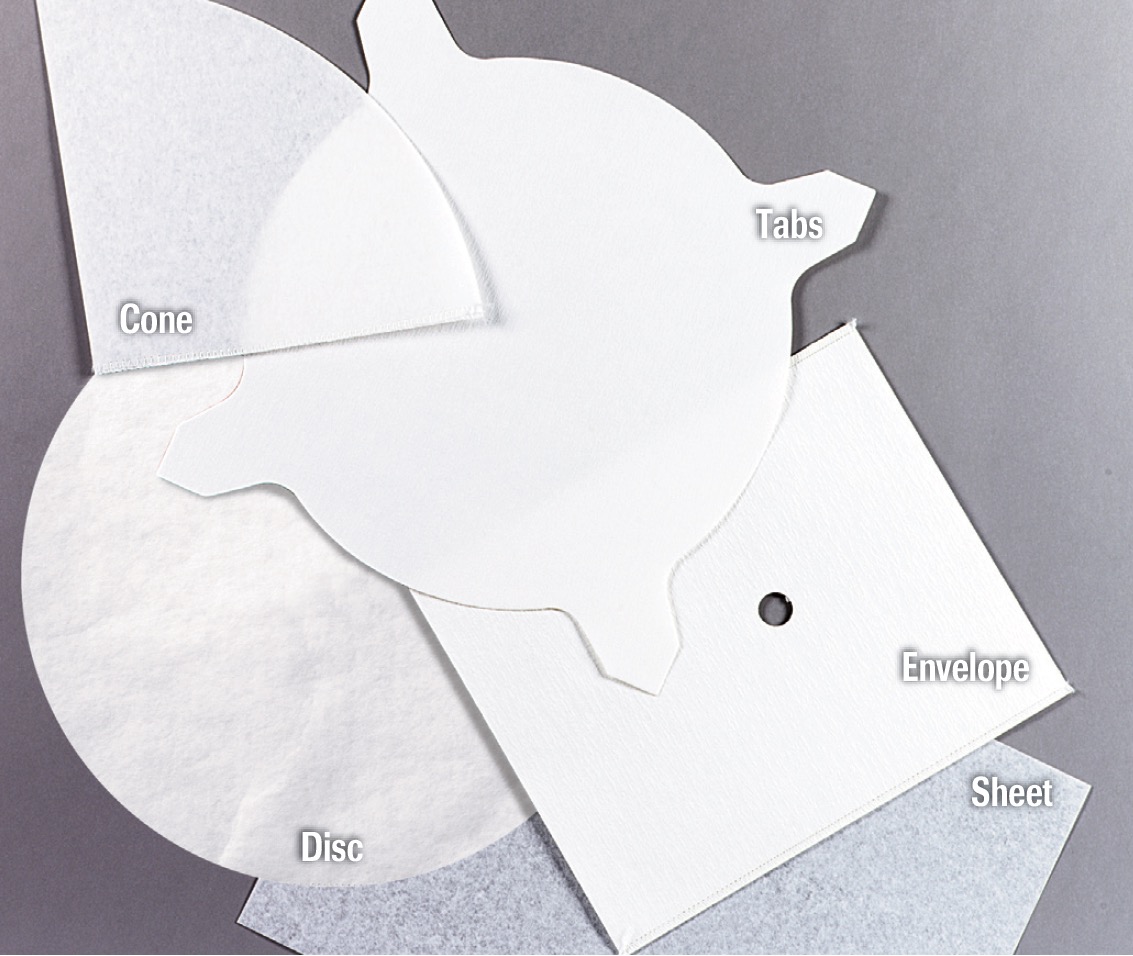

Filter Types and How to Measure
Sheet
Single thickness
1. Measure width and length.
2. If a hole is present:
A. Measure across the opening of the hole to determine the diameter.
B. Measure all sides to the outside edge of the hole to determine its position.

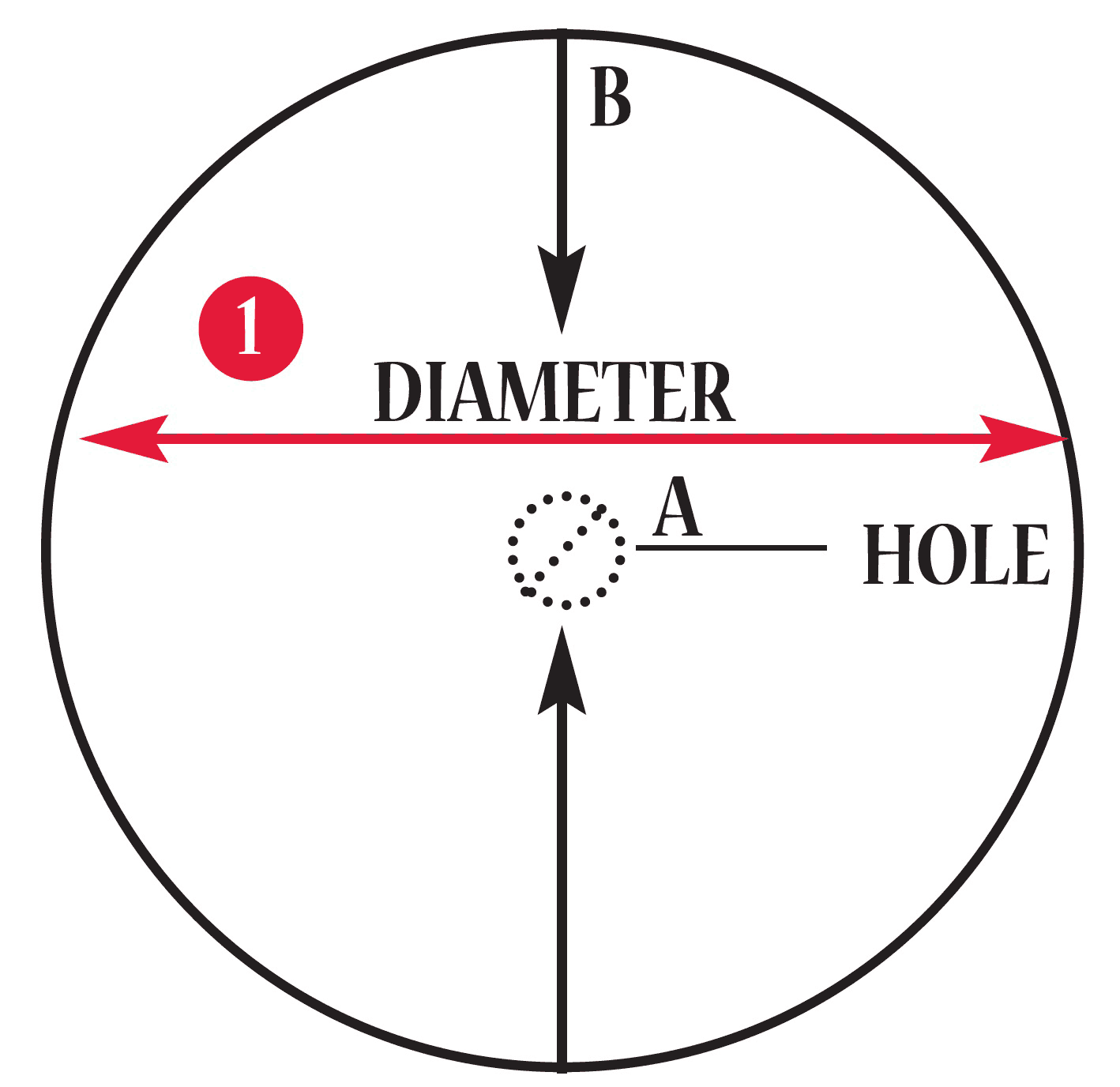

Disc
Round with or without hole
1. Measure diameter of disc.
2. If a hole is present:
A. Measure across the opening of the hole to determine the diameter.
B. Measure all sides to the outside edge of the hole to determine its position.

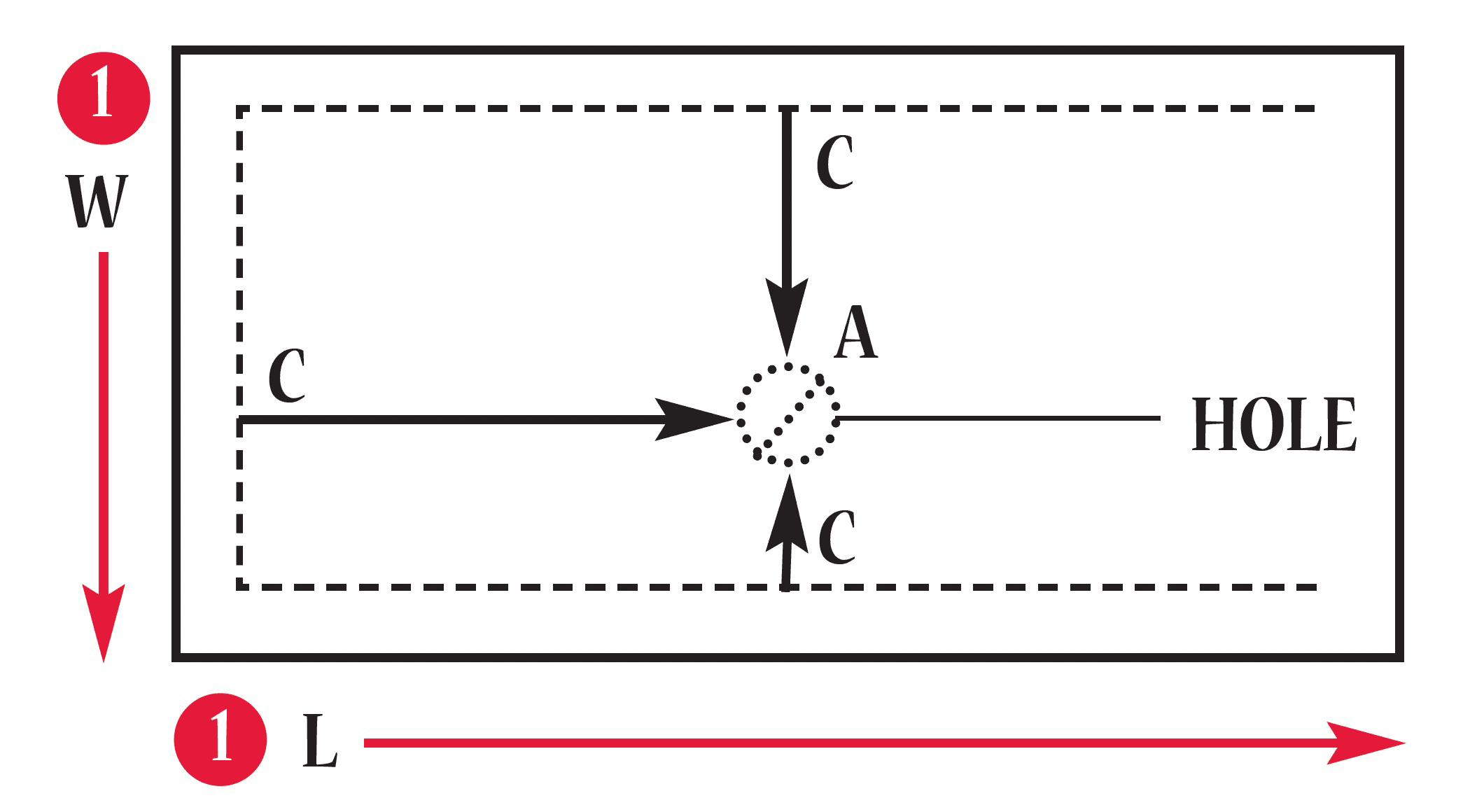

Envelope
Double thickness with stitching on two or three sides. These filters will come with or without holes. If a hole is present it will either be through one sheet or go directly through the filter.
1. Measure width and length.
2. If a hole is present:
A. Measure across the opening of the hole to determine the diameter.
B. Measure from the closed or stitched points of the filter to the edge of the hole. You should have three measurements for the hole position when you’ve finished.
C. Make a note if the hole is through one side of the filter or passes straight through both sides of the filter.
How to Read Filter Numbers
Filter Type
-
E = Envelope
-
D = Disc
-
S = Sheet
-
T = Tabs
Filter Material
-
3 = Standard flow synthetic non-woven material
-
4 = 44 pound crepe paper material
-
5 = 54 pound crepe paper material
-
6 = paper filled with Filter Brite® Powder
-
7 = 70 pound crepe paper material
-
8 = 35 pound smooth paper material
